High-Efficiency Showerhead

showerhead

Overview

High-efficiency showerheads reduce water use without sacrificing shower quality and ultimately save you money on your water and energy bills. Replacing a showerhead is easy! The high-efficiency showerhead adds pressure and oxygen so you use less water and less energy to heat the water. The average family can save 1,754 gallons of water per year.

Benefits:

  • WaterSense® certified
  • Three spray settings
  • Pressure-compensated stream that performs well at nearly every water pressure

Earth II CH N3912CHN3915CHn3917CH

Showerhead


pipetape

Plumber's Tape
(used for showerhead and faucet aerator installation)

organic-company-small-towel--12979_01


Small Towel

deep-clean-80286456


Old Toothbrush

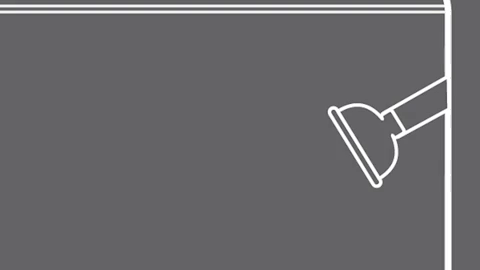

1. Begin by unscrewing the old showerhead from the showerhead arm by turning it counterclockwise.
002-0156-02-00 gif 1 shower

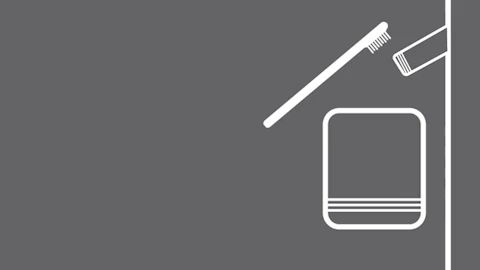

2. Now, using an old toothbrush and small towel, thoroughly clean and dry the threaded area of the showerhead arm.

002-0156-02-00 gif 2 shower

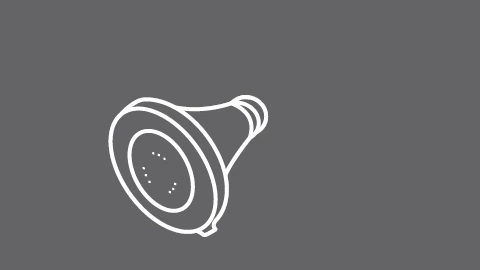

3. Your showerhead is universal and made to work with both internal and external showerhead arm threads. If your showerhead has internal threads, place the two washers that are included with your showerhead, inside the showerhead connector.

002-0156-02-00 gif 3 shower

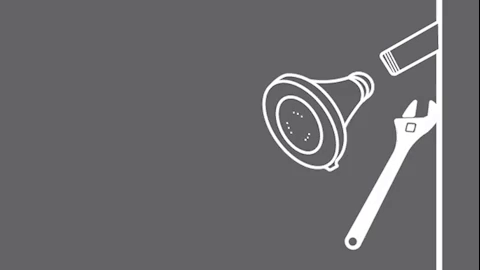

4. Now, using the adjustable wrench, screw your new showerhead to the arm by turning clockwise until snug.

If you notice leaks after turning on the water, add plumber’s tape to the threads of the showerhead arm.
002-0156-02-00gif 4 shower





Individual cost savings are not guaranteed and will vary based on weather, energy usage habits and rates.
This program is funded by ComEd, Nicor Gas, Peoples Gas and North Shore Gas customers in compliance with state law.
